Creative Specs

CREATIVE SPECS

Best Practices

Test different creatives Test two or three creatives to see what works best for your video.
Ensure that all text is legible
Implement CTAs for performance-driven campaigns
Use a variety of creative sizes for ample scale and optimization opportunities.
Recommended video lengths are 15-30 seconds

Standard Display

Recommended Dimensions

        Desktop: 300x600, 160x600, 300x250

        Mobile: 300x50, 320x50, 336x280, 1024x768, 300x100

        Desktop/Mobile: 728x90, 300x250

File Type: HTML, JS, CSS, JPG, PNG, GIF

Max Backup Image File Size: 40 KB

Max Initial File Size: 150 KB

Max Polite File Size: 1 MB

Max Animation: 30 Seconds
Max Loops: 3 Loops
Frame Rate: 24 frames per second

Native Display

Main Image: 1200x627, (1.91:1 aspect ratio)
Logo: 200x200 (1:1 aspect ratio)
Short Headline: 25 characters
Long Headline: 90 characters
Short Description: 90 characters
Long Description: 140 characters

Native Video

Max Video Length

Interstitial: 15-30 sec

Native Outstream: Up to 5 mins

Pre-Roll: 15-30 sec

File Type: MP4 or WebM

Max File Size: 75 MB

VAST: Supported

Aspect Ratio: 16:9

Standard Video

Sizes: 300x250 or Larger

File Type: MOV, MP4, WebM, AVI, WMV

File Size: 200 MB

Aspect Ratio: "16:9 Widescreen, 4:3 Standard"

Bit Rate: 300 - 400 KBPS

Max Length: 60 sec. 15 or 30 secs recommended

CTV

File Type: MP4

File Quality: 40 KB

Bit Rate: Minimum of 1500 kbps. 1.6-3.2 mbps preferred

File Size: 15-50 mb. 1.5 mbps preferred

File Tags: VAST 2.0

Length: 15 and 30 secs



Audio

File Type: MP4

File Quality: 40 KB

Bit Rate: Minimum of 1500 kbps. 1.6-3.2 mbps preferred

File Size: 15-50 mb. 1.5 mbps preferred

File Tags: VAST 2.0

Length: 15 and 30 secs

Rich Media

Initial Dimensions:

        Rectangle: 300x600

Skyscraper: 160x60, 120x600

Leaderboard: 728x90

Max Expanded Dimensions:

        Rectangle: 600x250

Skyscraper: 320x600

Leaderboard: 728x270

File Types: .GIF, .JPG, .PNG, .HTML5

Max Loops: 3

Max File Size: 150 KB

Max Initial File Load Size: 1 MB

Animation Length: 15 sec



HTML5 SPECS

HTML5 creatives are a type of display creative with their own specific recommendations, sourced from the IAB Display Advertising Guidelines. HTML5 creatives are displayed as a full HTML page in an iFrame.



Here's what you need to know about HTML5 creatives:



  • You may not use dynamic (DCO) or expandable creatives as HTML5 creatives.
  • Different browsers have different subsets of HTML5 features enabled. Your creative might fail on a browser if it attempts to use a feature that is not enabled in the browser. It is your responsibility to ensure that your creative “gracefully degrades" in case the browser it is viewed on doesn’t support the features it uses.
  • The IAB recommends adding the dimensions of your creative to your primary HTML document in a meta tag inside of the <head> section of your document. Here's an example, in which you'd replace the width and height values with the actual dimensions of your creative:

<meta name="ad.size" content="width=300,height=250"/>

  • A static backup image is required. This image is used to display the ad if a user has JavaScript disabled.
  • Commonly used JavaScript and CSS libraries (such as jQuery) do not need to be included with the creative.
  • Including image sprites instead of multiple images decreases the number of file requests made by your creative and increases its performance.
  • Avoid the use of video tags in HTML5.
  • Audio tags should play only if a user intentionally starts the audio



For details on this creative type, see HTML5 For Digital Advertising: Guidance for Ad Designers and Creative Technologists.



Initial Load: 300 KB (200 KB recommended)

Subload: 600 KB

Initial file load count: 10 files
Subload file count: 100 files

File size: 5 MB

User-initiated load: 2.2 MB (recommended)



File Packing



You can use one of the following packaging options:



A single HTML file.

  • All information for serving the creative (with the exception of commonly used JavaScript and CSS libraries) should be included in the HTML file. The maximum
  • HTML file size is 200 KB.
  • A single root/main HTML file with supporting images.
  • A single root/main HTML file with supporting images and additional supporting JS and CSS files.



Compressed (ZIP) files:

  • All files for displaying the creative (with the exception of commonly used JavaScript and CSS libraries) should be included in the ZIP file.
  • The primary HTML file should be located in the root of the ZIP file.
  • ZIP files must contain no more than 100 files, including at least one HTML file for use as the initiating file for display. Keep the file count low to minimize browser performance impact.
  • You can include only HTML, JS, CSS, MP4, JPG, JPEG, GIF, PNG, and SVG files in a ZIP file.

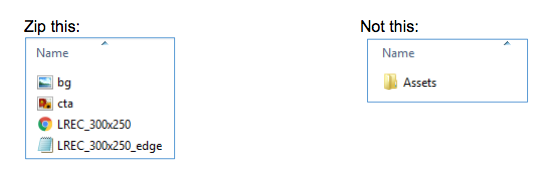

  • When packaging HTML5 creatives, include the asset files, not the folder containing them, in the ZIP file. See "Zip This" and "Do Not Zip This" attachments for reference.





The following table lists the maximum file size requirements for compressed files. See also File Sizes.



Automatically-started video: Less than 1.1 MB

Any individual file: 2.2 MB
Primary HTML file: 100 KB
ZIP file compressed: Less than 10 MB

ZIP file uncompressed: Less than 12 MB

Click Tag Parameters



A click tag is a parameter used in HTML5 banner ads. The parameter is a variable that defines the destination URL and is provided in the primary HTML file as a URL parameter.



  • You can customize the name of the URL parameter when uploading or editing the creative.
  • Click tag names are case-sensitive. Be sure to use uniform capitalization throughout the creative and any supporting files. For example, clickTag and clickTAG are not interchangeable. The platform defaults to clickTAG.
  • When the user clicks the ad, the creative must direct the user to the correct click tag page in a new window.
  • If you want to also use that clickthrough URL in your HTML5 creative, you can configure the creative to use the backup clickthrough URL as the default clickthrough URL.

To call the clickthrough page through the backup ad image correctly, you must supply a clickthrough parameter.

  • You can use multiple click-through URLs and define different landing pages for different actions.



Example - A Click Tag Parameter Example



The following code block shows one way to retrieve and implement a creative with a clickthrough URL. In this example, a single image is wrapped with an anchor tag, which, when clicked, opens a new window with the address stored in the  clickTAG URL parameter of the creative.



The first ❗function retrieves the clickTAG parameter.

The second ❗is the location where the value for the clickthrough URL should be stored in the  window.clickTAG variable.



<html>

  <head>

    <script type="text/javascript" charset="utf-8">

      function getParameterByName(name) { ❗

      name = name.replace(/[\[]/, "\\[").replace(/[\]]/, "\\]");

      var regex = new RegExp("[\\?&]" + name + "=([^&#]*)"),

      results = regex.exec(location.search);

      return results === null ? "" :

      decodeURIComponent(results[1].replace(/\+/g, " "));

    }

    var clickTAG = getParameterByName("clickTAG");

   ❗

    </script>

  </head>

  <body>

    <a href="javascript:window.open(window.clickTAG);void(0);">

      <img src="clickme.jpg"/>

    </a>

  </body>

</html>
